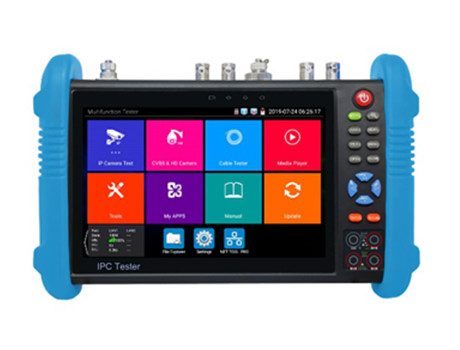

7" CCTV IPC Tester
Model:TT-IPC7900
Camera test:
●7 inch Retina touch screen, 1920*1200 resolutions
● H.265 & H .264 IP, 4K video display via mainstream
● 8MP TVI test,3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu *
● 8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● 8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● 8MP EX-SDI test, 3840 x 2160P 25/30 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● CVBS camera test and PTZ control
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement*
● DC12V/3A power output, camera can be powered from DC 12Votage
● 48V PoE power output power
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
● CVBS loop test, the tester can send and receive color bar generator signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
● Upgraded Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables, more accurately. *
● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM*
Other functions:
● Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength
● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
● POE & power information, DC12V& PoE power and voltage output /input measurement
● Tester Play: Tester, android version mobile phone and PC display at the same time
● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
● HDMI input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display, record and snapshot *
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Self-update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Quick office, quick office app (support excel, word, ppt format) doc. editable
● 8GB SD card included
● Display its genuine resolution of the IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.6 V /7800mAh Lithium Ion Polymer Battery, after 3.5 hours fast charging, working time lasts 16 hours
