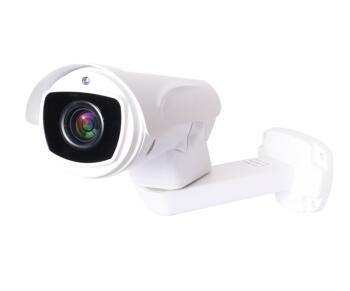

4X HD IP PTZ CCTV Box CAMERA
* Total Metal housing, IP66
* A-B scan, tour available
* Support audio ( optional)
* Support external POE(optional)
* ONVIF GB/T28181;Support P2P function
* Support H.264/MJPEG compression,triple stream, video output
* Optional 2.8-12mm, 5.1-51mm lens
|
|
|
|
|
|
|
Specification
|
|
Model
|
TT-IPC345MPT4X
|
TT-IPC345MPT10X
|
|
Sensor
|
1/3" CMOS 5MP SONY335
|
1/3" CMOS 5MP SONY335
|
|
Output pixel
|
2592x1944/15fps,2592x1520/25fps
|
2592x1944/15fps,2592x1520/25fps
|
|
Lens
|
4X f=2.8~12MM
|
10X f=5.1mm~51mm
|
|
BLC
|
Support
|
|
AGC
|
Auto/manual
|
|
WB
|
Auto/manual/indoor/outdoor
|
|
S/N Ratio
|
>50dB
|
|
Communications Protocol
|
TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
|
|
Software Control
|
IE, CMS, Management Platform
|
|
Video compression
|
H.264/H.265/M-JPEG
|
|
audio compression
|
G711，PCM
|
|
Mobile View(optional)
|
Android iPhone
|
|
Rotation Range
|
Pan:0º~220º , Tilt:-45º~40º
|
|
Rotation Speed
|
Pan:0~30°/s , Tilt:0~25º/s
|
|
Preset Points
|
220pcs presets（dwell time 01-60s interval available）
|
|
Guard Tours
|
3 groups( Max.16 points, dwell time user selectable)
|
|
AB scan range
|
Any point in range:-45º~40º and 0º~200º
|
|
AB scan speed
|
1-9 grades
|
|
Operating temperature
|
Outdoor: -40℃~+60℃
|
|
Operation menu
|
English
|
|
Consumption
|
≤15W
|
|
Lightning Protection
|
Transient voltage 6000V
|
|
Related validation
|
IP66,CE,FCC,RoHs
|
|
Auto Control IR LED
|
PWM
|
|
IR distance
|
Up to 100 meters
|
|
LEDs
|
6 PCS Array 42Mil IR
|
4 PCS Array 42Mil IR+2 PCS Laser LED
|
|
Support ambient light detection
|
IR illumination on 1-9 grades selectable
|
