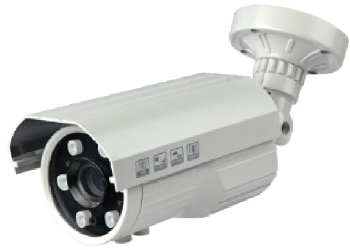

l 5MP/8MP HD IP Camera
l Adopt Linux embedded operating system, low bit rate, low power consumption, stable and reliable;
l H.265 video coding, high compression ratio, good picture quality; support dynamic rate control;
l Short video delay and the video high-speed motion picture is clear and smooth;
l High-performance 3D digital noise reduction and edge enhancement;
l 10/100M adaptive, support network protocols such as HTTP/RTSP/DHCP;
l ICR infrared filter type automatic switching to achieve true day and night monitoring;
l Support P2P for mobile phone or computer monitoring;
l Support GB28181 and Onvif 2.4;
l TVS4000V，lightning protection;
l IR range : 80-100m,2.8-12mm manual or motorized lens;
l IP66, DC12V, POE;
l Body:ф102mmX162mm(L)
|
MODEL
|
TT-IPC504IV8GA
|
TT-IPC803IV8G
|
|
BASIC PARAMETER
|
|
Image Sensor
|
1/2.7" Hi3516D
|
1/2 Hi3519V101
|
|
Chipset
|
SONY326
|
Sony IMX274
|
|
Effective Pixels
|
5MP
|
8MP
|
|
Min. Illumination
|
Color：0.01Lux@F1.2；
B&W：0.001Lux(F1.2,AGC ON)；0Lux with IR
|
Color：0.01Lux@F1.2；
B&W：0.001Lux(F1.2,AGC ON)；0Lux with IR
|
|
IR Distance
|
50-80M（6 x IR III Array IR Lamps）
|
|
Lens
|
2.8-12mm Motorized Lens
|
|
Noise Reduction
|
3D digital noise reduction
|
|
WDR
|
Support WDR（D-WDR）,＞80db
|
|
BLC
|
Support
|
|
S/N Ratio
|
≥50db(AGC closed)
|
|
AUDIO / VIDEO ENCODING
|
|
Video Encoding
Format
|
H.265+/H.265/H.264/MJPEG
|
|
Audio Encoding
Format
|
G.711a/ G.711u/G.726
|
|
Image Resolution
|
PAL：15fps(2592x1944),25fps(2048×1536,1920×1080)
NTSC：15fps(2592x1944),30fps(2048×1536,1920×1080)
|
PAL：25fps(3840×2160),25fps(2592×1944,2548×1536)；
NTSC：30fps(3840×2160),30fps(2592×1944,2548×1536)
|
|
Video Bit Rate
|
32Kbps-16Mbps continuously adjustable, support CBR / VBR
|
|
Audio Bit Rate
|
G.711(64Kbps)
|
|
DATA TRANSMISSION & STORAGE
|
|
Data Storage
|
Video、Image, Audio
|
|
Storage Mechanism
|
Manual, automatic (cycle, timing, alarm switch, motion detection)
|
|
Alarm Data Transmission
|
FTP, E-mail, Browser, Management software
|
|
Protocol
|
TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP/IPv6/SNMP/SMTP/802.1X/QoS/HTTPS
(Customized)
|
|
Access Standard
|
ONVIF Protocol;
|
|
Smart Functions
|
Motion detection, cover alarM, IP/MAC check
|
|
Client Browse
|
Support IE6.0 and above browser, support 10 users concurrent access (MAX)
|
|
P2P Remote
|
IOS/Android/Windows Mobile APP:UVCAM/umeye
|
|
PORT
|
|
Network
|
RJ45, 10M/100M network adaptive
|
|
GENERAL
|
|
Operation T/H
|
-20°C ~ 65°C/0﹪-90﹪
|
|
Waterproof
|
IP66
|
|
Power Supply
|
DC12V /POE
|
|
Power Consumption
|
<9.5W (MAX)
|
|
Dimension (mm)
|
Camera: ф102mmX162mm(L)
|
