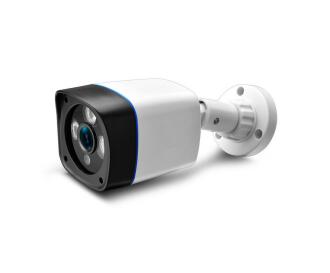

4-IN-1 AHD/TVI/CVI/CVSB Camera
Model:TT-HD26T
Model No. | TT-HD26T3G | TT-HD26T3SA | TT-HD26T3 | TT-HD26T3SD | TT-HD26T3NL | TT-HD26T3S |
Camera | ||||||
Image Sensor | GC2023 | GC2023 | SONY IMX323 | SONY IMX323 | SONY IMX291 | SONY IMX290 |
Main processor | FH8536 | FH8536 | FH8536 | NVP 2441H | NVP 2441H | FH8550D |
Resolution | 1080P | |||||
Effective Pixels | 1920* 1080P | |||||
Pixels | 2.0 Mega Pixel | |||||
Frame rate | 25fps@PAL / 30fps@ NTSC | |||||
TV System | PAL/NTSC | |||||
Electronic Shutter Time | Auto: PAL 1/25s~1/50,000s; NTSC 1/30s~1/60,000s | |||||
Sync System | Internal | |||||
Usable Illumination | 0.01Lux | STARVIS 0.0001Lux | ||||
S/N Ratio | ≥52dB | |||||
Scanning System | Progressive | |||||
Hybird Type | AHD/TVI/CVI/CVBS (960H) 4 in 1 | |||||
Lens | ||||||
Focus Length | 3.6mm Fixed | |||||
Focus Control | Fixed | |||||
Lens Type | Fixed | |||||
Night Vision | ||||||
Infrared LED | SMT IR LED: 18μ x 18PCS | |||||
Infrared Distance | 30M | |||||
IR Status | Under 10 Lux By CDS | |||||
IR Power On | CDS Auto Control | |||||
Camera Features | ||||||
OSD/UTC Menu Language | EN, CN, DE, FRA, IT, ES, PL, RU, PT, NL, TR | |||||
Day/Night | Color/ B&W (IR-CUT ) | |||||
White Balance | Auto/Manual | |||||
Gain Control | Auto | |||||
Noise Reduction | 2D/ 3D NR | |||||
Picture Adjustment | YES | |||||
OSD Support | YES | |||||
General | ||||||
Housing | Metal | |||||
Waterproof | YES, IP66 Waterproof | |||||
Bracket | YES | |||||
IR Cut Filter | YES | |||||
Operation Temperature | -10℃ ~ +50℃ RH95% Max | |||||
Storage Temperature | -20℃ ~ +60℃ RH95% Max | |||||
Power Source | DC12V±10%,500mA | |||||
Dimension | 200*60*60mm | |||||
Weight | 0.7KG |
