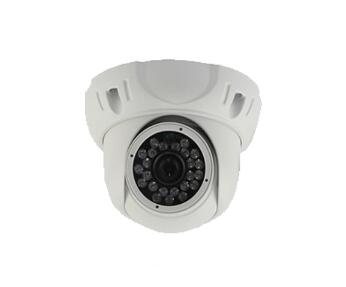

4-IN-1 AHD/TVI/CVI/CVSB Camera
Model:TT-HD60A
Model No. | HD60A3G | HD60A3G | HD60A3SA | HD60A3 | HD60A3SD | HD60A3NL | HD60A3SL |
Camera | |||||||
Image Sensor | GC2023 | GC2023 | SONY IMX323 | SONY IMX323 | SONY IMX307 | SONY IMX291 | SONY IMX290 |
Main processor | FH8536 | FH8536 | FH8536 | NVP 2441H | NVP 2441H | NVP 2441H | FH8550D |
Resolution | 1080P | ||||||
Effective Pixels | 1920* 1080P | ||||||
Pixels | 2.0 Mega Pixel | ||||||
Frame rate | 25fps@PAL / 30fps@ NTSC | ||||||
TV System | PAL/NTSC | ||||||
Electronic Shutter Time | Auto: PAL 1/25s~1/50,000s; NTSC 1/30s~1/60,000s | ||||||
Sync System | Internal | ||||||
Usable Illumination | 0.01Lux | STARVIS 0.0001Lux | |||||
S/N Ratio | ≥52dB | ||||||
Scanning System | Progressive | ||||||
Hybird Type | AHD/TVI/CVI/CVBS (960H) 4 in 1 | ||||||
Lens | |||||||
Focus Length | 3.6mm Fixed | ||||||
Focus Control | fixed | ||||||
Lens Type | fixed | ||||||
Night Vision | |||||||
Infrared LED | 12μ x 24PCS | ||||||
Infrared Distance | 20M | ||||||
IR Status | Under 10 Lux By CDS | ||||||
IR Power On | CDS Auto Control | ||||||
Camera Features | |||||||
OSD/UTC Menu Language | EN, CN, DE, FRA, IT, ES, PL, RU, PT, NL, TR | ||||||
Day/Night | Color/ B&W (IR-CUT ) | ||||||
White Balance | Auto/Manual | ||||||
Gain Control | Auto | ||||||
Noise Reduction | 2D/ 3D NR | ||||||
Picture Adjustment | YES | ||||||
OSD Support | YES | ||||||
General | |||||||
Housing | Metal | ||||||
Waterproof | YES, IP66 Waterproof | ||||||
Bracket | NO | ||||||
IR Cut Filter | YES | ||||||
Operation Temperature | -10℃ ~ +50℃ RH95% Max | ||||||
Storage Temperature | -20℃ ~ +60℃ RH95% Max | ||||||
Power Source | DC12V±10%,500mA | ||||||
Dimension | 100*76mm | ||||||
Weight | 0.5KG |
