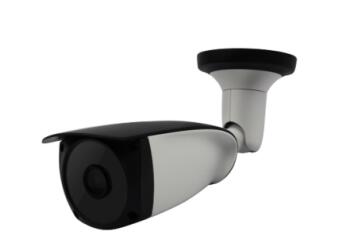

4-IN-1 AHD/CVI/TVI/CVBS Camera
Model:TT-F30
Model No. | HD29X3G | HD29X3SA | HD29X3 | HD29X3SD | HD29X3SL |
Camera | |||||
Image Sensor | GC2023 | SONY IMX323 | SONY IMX323 | SONY IMX291 | SONY IMX290 |
Main processor | FH8536 | FH8536 | NVP 2441H | NVP 2441H | FH8550D |
Resolution | 1080P | ||||
Effective Pixels | 1920* 1080P | ||||
Pixels | 2.0 Mega Pixel | ||||
Frame rate | 25fps@PAL / 30fps@ NTSC | ||||
TV System | PAL/NTSC | ||||
Electronic Shutter Time | Auto: PAL 1/25s~1/50,000s; NTSC 1/30s~1/60,000s | ||||
Sync System | Internal | ||||
Usable Illumination | 0.01Lux | STARVIS 0.0001Lux | |||
S/N Ratio | ≥52dB | ||||
Scanning System | Progressive | ||||
Hybird Type | AHD/TVI/CVI/CVBS (960H) 4 in 1 | ||||
Lens | |||||
Focus Length | 3.6mm Fixed | ||||
Focus Control | Fixed | ||||
Lens Type | Fixed | ||||
Night Vision | |||||
Infrared LED | 28μ x 6PCS | ||||
Infrared Distance | 30M | ||||
IR Status | Under 10 Lux By CDS | ||||
IR Power On | CDS Auto Control | ||||
Camera Features | |||||
OSD/UTC Menu Language | EN, CN, DE, FRA, IT, ES, PL, RU, PT, NL, TR | ||||
Day/Night | Color/ B&W (IR-CUT ) | ||||
White Balance | Auto/Manual | ||||
Gain Control | Auto | ||||
Noise Reduction | 2D/ 3D NR | ||||
Picture Adjustment | YES | ||||
OSD Support | YES | ||||
General | |||||
Housing | Metal | ||||
Waterproof | YES, IP66 Waterproof | ||||
Bracket | YES | ||||
IR Cut Filter | YES | ||||
Operation Temperature | -10℃ ~ +50℃ RH95% Max | ||||
Storage Temperature | -20℃ ~ +60℃ RH95% Max | ||||
Power Source | DC12V±10%,500mA | ||||
Dimension | 200*60*60mm | ||||
Weight | 0.7KG |
